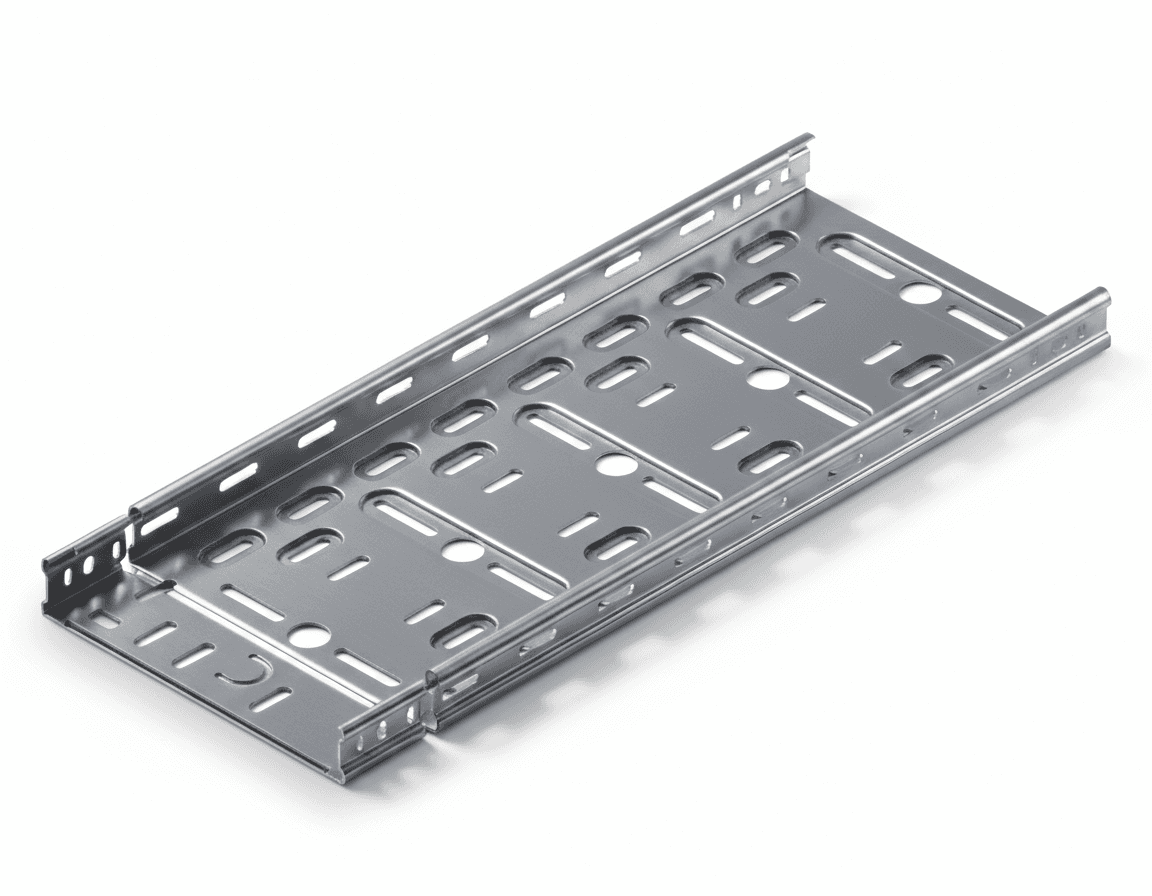

SNAP-FIT
A smart cable tray system that clicks together in one simple movement. Thanks to its snap-fit design, installation is faster, cleaner, and more efficient. Ideal for projects where speed and a neat finish matter.
A smart cable tray system that clicks together in one simple movement. Thanks to its snap-fit design, installation is faster, cleaner, and more efficient. Ideal for projects where speed and a neat finish matter.
Quick Assembly
Quick Assembly
S T R O N G I-S H A P E D
P R O F I L E
S T R O N G
I S H A P E D
P R O F I L E
S T R O N G
I S H A P E D
P R O F I L E
HIGHER CAPACITY
HIGHER CAPACITY
SAFE TO USE
SAVE TO USE
SAVE TO USE
Extra safe
Extra safe
The rolled edge ensures additional safety during installation and use.
Stronger profile
Stronger profile
The patented I-profile design makes the cable tray exceptionally robust.
Fast installation
Fast installation

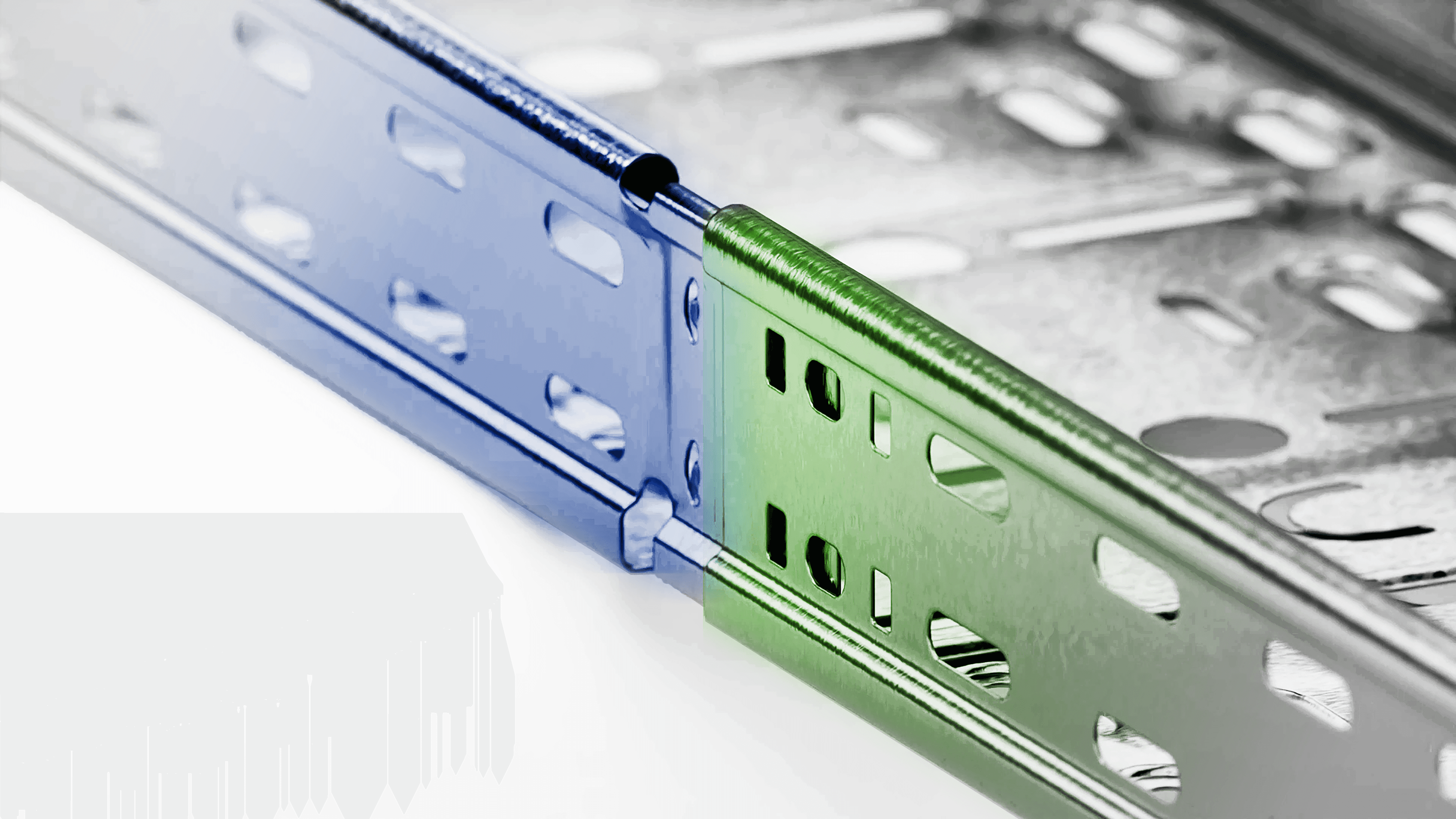

Fast coupling with integrated locking system allows trays to be connected in one click.
Fire resistant (DIN 4102-12)
Fire resistant (DIN 4102-12)
The fire-resistant design helps the system maintain its structural integrity in case of fire.
The Snap is available in Sendzimir Galvanised (PG) and Ultra Galva (UG)
The Snap is available in Sendzimir Pre-Galvanised (PG) and Ultra Galva (UG)
ULTRA GALVA
A high-performant metallic coating which offers an optimum surface protection in a wide variety of agressive and demanding environments, indoor as well as outdoor. The better alternative to hot-dip galvanizing. More environmentally friendly and more resistant.

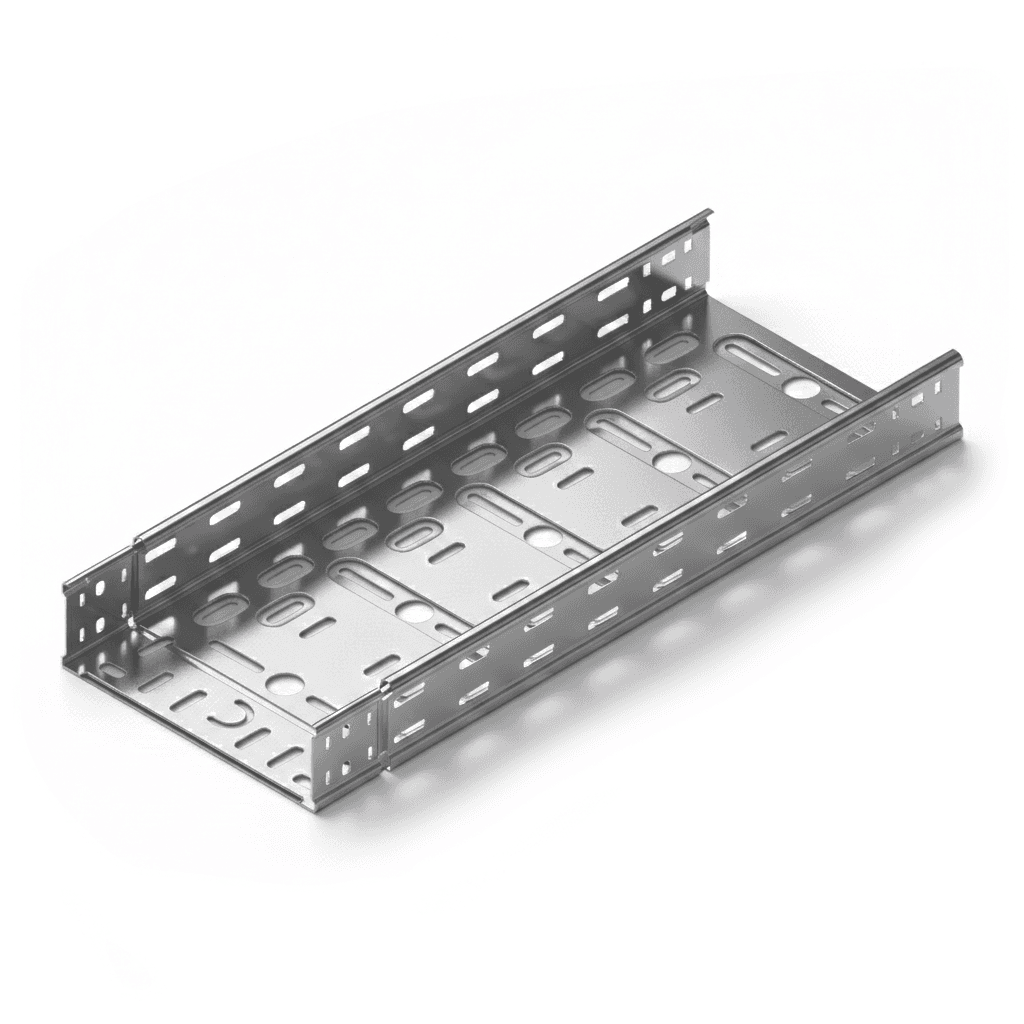

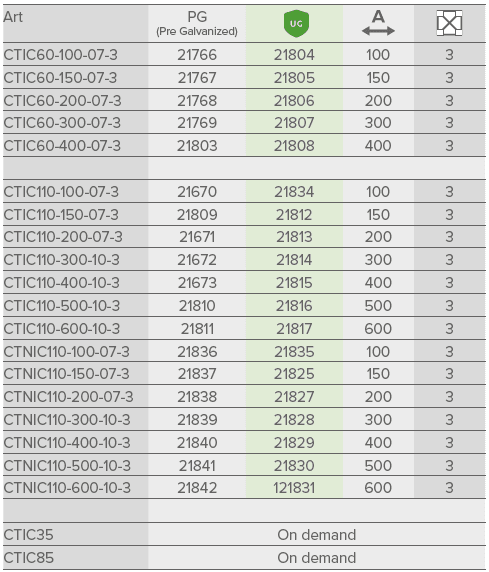

CTIC110
Thickness 0.75
Width 100-150-200
Thickness 1mm
Width 300-400-500-600
UG and PG version
Also available in closed version
CTIC110
Thickness 0.75
Width 100-150-200
Thickness 1mm
Width 300-400-500-600
UG and PG version
Also available in closed version
CTIC60
Length 3M
Thickness 0.75 in UG
Thickness 1 mm in PG
Also available in closed version
CTIC60
Length 3M
Thickness 0.75 in UG
Thickness 1 mm in PG
Also available in closed version
CTIC35 • On Request
CTIC85 • On Request
CTIC35 • On Request
CTIC85 • On Request
Total solution
Trayco is your total supplier for both quality and competitiveness.

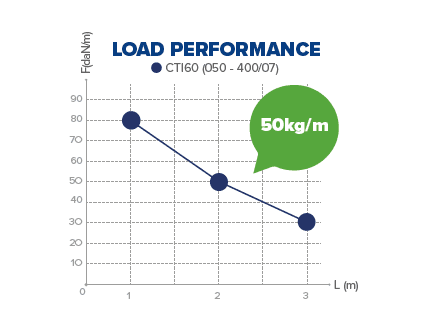

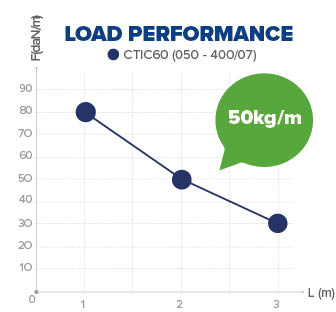

Higher capacity
The unique Trayco shape provides up to 50% higher load capacity than market alternatives.
Extra safe
The rolled edge ensures additional safety during installation and use.
Stronger profile
The patented I-profile design makes the cable tray exceptionally robust.
Greater rigidity
The closed flange increases the overall stability of the system.
Electrical continuity
Equipotential bonding is ensured by the integrated coupling.
Fast installation
Fast coupling with integrated locking system allows trays to be connected in one click.
ULTRA GALVA is a high-performant metallic coating which offers an optimum surface protection in a wide variety of agressive and demanding environments, indoor as well as outdoor.
ULTRA technical
ULTRA GALVA is self-healing after cutting and, compared to hot-dip galvanizing, remains smooth without deformations or dull spots; its high wear resistance makes it extremely suitable for coastal areas.
ULTRA economical
Thanks to shorter lead times, ULTRA GALVA makes meeting deadlines easier.
ULTRA safe
ULTRA GALVA can be processed cold without zinc ash, flux residues or zinc spikes, making it safer for cables and people.
ULTRA environmentally friendly
ULTRA GALVA uses 3× less zinc, emits less CO₂ and is 100% recyclable.
